Health supplement manufacturing eventually hits a breaking point. Facilities outgrow manual capsule trays and outsourced encapsulation. Bringing operations in-house becomes necessary to scale. This transition introduces immediate operational bottlenecks. Facility managers face the tension of maintaining strict dosing precision, achieving high throughput, and adhering to Good Manufacturing Practices (GMP) without inflating labor requirements.
Relying on manual labor for high-volume encapsulation creates unacceptable variance. Active pharmaceutical ingredients (APIs) are expensive. Micro-variations in capsule weights lead to rejected batches and significant financial loss. Mechanizing this process is a strategic requirement. Investing in high-quality Capsule Filling Machines stabilizes unit economics, reduces product loss, and ensures batch-to-batch consistency in a heavily regulated market.
Precision Drives Margins: Mechanized capsule filling drastically reduces dosing errors and expensive active pharmaceutical ingredient (API) waste compared to manual processes.
Scalability Requires the Right Automation Level: Choosing between semi-automatic and fully automatic systems depends on exact batch sizes, labor availability, and target throughput (capsules per hour).
Innovation Without Over-Investing: Small-scale and semi-automatic capsule filling machines allow brands to bring R&D and pilot batches in-house at accessible price points.
Compliance is Non-Negotiable: Modern machines integrate sorting, separating, and rejection mechanisms that are critical for meeting GMP and FDA quality standards.
Table of Contents
The need for automation can be identified by tracking key production indicators such as filling accuracy, labor requirements, and ingredient waste. If capsule weight variations exceed acceptable limits or quality checks frequently fail, manual filling processes may no longer meet production needs. High labor demands and increasing order volumes are also clear signs that upgrading to a capsule filling machine is necessary.
Automated systems help improve dosing consistency, reduce powder loss, and ensure more efficient use of valuable ingredients. By replacing manual spreading and filling operations, manufacturers can achieve more stable production and better scalability.
Manual capsule trays offer low barriers to entry but carry significant hidden penalties. Operators get tired. When fatigue sets in, tamping pressure drops. This inconsistency directly causes batch rejections during quality control checks. One operator might tamp the powder firmly, while another uses a lighter touch. This results in wildly different capsule weights within the exact same batch.
Furthermore, manual handling increases hygiene risks. Even with strict gowning procedures, prolonged human contact with open capsules elevates the risk of cross-contamination. Mechanized systems eliminate these hidden penalties. Machines apply uniform tamping pressure across thousands of capsules per hour. They operate in enclosed environments, drastically reducing powder exposure to the ambient room.
Operational Factor | Manual Capsule Trays | Mechanized Filling Systems |
|---|---|---|
Weight Consistency | Highly variable; depends entirely on operator fatigue and technique. | Extremely consistent; mechanical tamping ensures uniform powder slugs. |
Hygiene and Contamination | High risk; prolonged exposure to ambient air and human contact. | Low risk; enclosed dosing stations and automated handling. |
Production Scalability | Linear and limited; requires hiring more staff to increase output. | Exponential; a single machine can replace dozens of manual operators. |
API Waste | High; powder spills over trays during manual spreading and tamping. | Minimal; closed-loop dosing directs powder exclusively into capsule bodies. |
Introducing a machine fundamentally organizes the filling process. Manual assembly is inherently chaotic. Operators move trays, spread powder manually, and manually join capsule halves. This workflow lacks standardization. Mechanization transforms this chaos into a linear manufacturing line. Empty capsules enter a hopper, powder enters a separate dosing station, and finished products exit through a dedicated chute.
This organized flow allows facility managers to implement precise standard operating procedures (SOPs). You can measure exact throughput per hour. You can schedule maintenance intervals based on machine cycles rather than operator shifts. Standardizing the flow ensures that production schedules remain stable, predictable, and highly efficient. You move from guessing your daily output to calculating it with mathematical certainty.

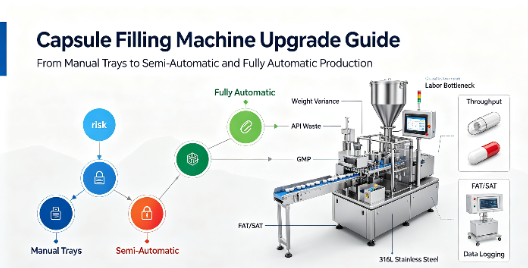

Semi-automatic systems serve small-to-medium batch production environments. They are ideal for R&D labs, pilot testing facilities, and manufacturers transitioning away from manual trays. These machines require an operator to facilitate the movement of capsule rings between different stations. The machine handles the precise sorting, separating, and powder filling, but human intervention connects the workflow.
These systems foster innovation by allowing brands to test new formulations in-house. Small-scale Capsule Filling Machines provide professional-grade encapsulation without demanding massive facility overhauls. Brands can run pilot batches of new herbal blends or specialized vitamins to test market viability. This capability brings product development entirely in-house, bypassing the high minimum order quantities demanded by contract manufacturers.
Operationally, the workflow is split into distinct physical steps. The operator places a capsule ring into the separation station. The machine loads empty capsules and uses a vacuum to separate the caps from the bodies. The operator then physically moves the ring containing the capsule bodies to the dosing station. An auger or tamping system fills the bodies with powder. Finally, the operator moves the ring to the joining station, where pneumatic pins press the caps onto the filled bodies.
The primary advantage is the balance of professional dosing precision with an accessible entry point. However, production remains tied to the operator's speed. Continuous production requires constant human attention. If the operator steps away, production stops. This limits the maximum hourly throughput compared to fully automated alternatives.
Fully automatic capsule filling machines are designed for large-scale production with minimal manual operation. After loading capsules and powder, the machine automatically completes capsule sorting, separation, filling, closing, and ejection. These systems provide high output, stable performance, and consistent filling accuracy for high-volume manufacturing.
However, automatic machines require more advanced setup and maintenance. Changing capsule sizes involves replacing tooling components and recalibrating the system. Proper installation, adjustment, and operator training are essential to prevent production interruptions and ensure continuous operation.
Feature | Semi-Automatic Systems | Fully Automatic Systems |
|---|---|---|
Throughput | 10,000 to 30,000 capsules per hour | 50,000 to 400,000+ capsules per hour |
Labor Requirement | Dedicated operator required for continuous operation | Minimal monitoring; one operator can manage multiple units |
Ideal Use Case | R&D, pilot batches, small-to-medium manufacturing | Enterprise-scale, continuous high-volume production |
Changeover Complexity | Moderate; requires swapping capsule rings and dosing plates | High; requires changing turret segments, dosing disks, and pins |
Achieving exact dosing precision is the primary function of modern encapsulation equipment. Machines utilize two primary mechanisms for powder compaction: tamping pin technology and dosator technology. Tamping pin systems use a dosing disk with multiple cavities. As the disk rotates, tamping pins compress the powder into the cavities across several stations, forming a solid slug. This slug is then transferred into the capsule body. Dosator systems use a hollow tube equipped with an internal piston. The tube plunges into the powder bed, capturing a specific volume, and the piston compresses it before ejecting it into the capsule.
Tamping pins generally handle a wider variety of powder characteristics, including slightly cohesive blends. They are the industry standard for most herbal supplements and vitamin blends. Dosators excel with free-flowing powders and micro-dosing applications. The choice between these mechanisms directly impacts weight accuracy.
Dosing Technology | Mechanism of Action | Best Suited For |
|---|---|---|
Tamping Pin | Compresses powder into a dosing disk cavity over multiple stations to form a slug. | Cohesive powders, herbal blends, standard vitamin formulations. |
Dosator | Plunges a hollow tube into a powder bed and uses an internal piston to compress the dose. | Free-flowing powders, micro-dosing, highly potent APIs. |
The financial impact of dosing precision cannot be overstated. When handling highly potent supplement ingredients, overfilling by even 5% destroys profit margins over a production run of one million capsules. Conversely, underfilling leads to regulatory violations and consumer distrust. Mechanized compaction ensures that weight variance remains well below 2%, virtually eliminating API waste and protecting the bottom line.
Machine speed should match actual production requirements rather than only focusing on maximum output ratings. Choosing equipment that fits the capacity of packaging lines and order demand helps avoid bottlenecks. Automated systems provide stable production speed, predictable output, and easier production planning compared with manual processes.
Capsule filling machines should support different materials, including powders, granules, pellets, and other formulations. The right dosing system helps maintain filling accuracy for different product characteristics. Modular tooling and quick-change designs reduce downtime when switching between capsule sizes or products, improving overall production efficiency.
GMP requirements directly affect capsule filling machine design. Product-contact parts should use 316L stainless steel, while seals and gaskets must meet FDA food-grade standards to prevent contamination. A sanitary design with smooth surfaces, easy disassembly, and simple cleaning procedures helps reduce cross-contamination risks and improves production safety.
Automated inspection and rejection systems help maintain capsule quality during production. Sensors can identify damaged or improperly separated capsules and remove them before filling. Integrated HMI systems record production data, while overload protection features prevent equipment damage caused by jams or incorrect operation, improving reliability and reducing downtime.
Proper operator training is essential for maintaining stable capsule production after equipment installation. Untrained staff may cause tooling errors, powder waste, or machine damage during operation and changeovers. Suppliers should provide FAT, SAT, and hands-on training covering machine operation, cleaning, maintenance, and troubleshooting to ensure safe and efficient production.
The production environment directly affects capsule quality and machine performance. Temperature, humidity, and dust control must be properly managed to prevent capsule damage, powder clumping, and contamination risks. A controlled production room with suitable HVAC and dust extraction systems helps maintain consistent filling accuracy and reliable machine operation.
Audit your current production bottlenecks to determine your exact hourly throughput requirements and acceptable weight variance margins.
Evaluate your facility's HVAC capabilities to ensure you can maintain the strict temperature and humidity controls required for automated encapsulation.
Compile a list of your most difficult-to-run powders to use as test materials during vendor evaluations.
Request comprehensive technical specification sheets and live material-run demonstrations from shortlisted manufacturers before finalizing any procurement decisions.
A: Fully automatic systems typically produce between 50,000 and 400,000 capsules per hour. The exact output depends on the machine's turret size, the number of dosing stations, and the flow characteristics of the specific supplement powder being processed.
A: Yes. Semi-automatic machines are ideal for R&D and pilot testing. They offer professional dosing precision at lower throughputs, typically 10,000 to 30,000 capsules per hour. This allows facilities to test new formulations without committing to enterprise-scale automated lines.
A: Machines use either tamping pin or dosator technology. Tamping pins compress powder into solid slugs within a dosing disk, which is excellent for cohesive powders. Dosators use a plunging tube and piston, which is highly accurate for free-flowing powders and micro-dosing.
A: Yes. Most machines are designed with modular tooling. Operators can swap out capsule size parts, such as separation rings, dosing disks, and ejection pins, to switch production from Size 00 to Size 1 or other standard dimensions.
A: Modern machines feature integrated sensors and overload clutches. If a capsule jams or the turret experiences excessive torque, the clutch disengages the main drive motor. An auto-shutoff mechanism halts the machine immediately to prevent mechanical damage.
A: Facilities must install dedicated HVAC systems to maintain strict environmental controls. Temperatures should remain between 20°C and 24°C, with relative humidity controlled between 40% and 50%. Dedicated dust extraction systems are also required to manage airborne powder.
