Encapsulation remains a severe bottleneck in supplement manufacturing. Equipment limitations directly impact production lead times, formulation accuracy, and overall product quality. Supplement brands constantly face the tension between scaling production volume and maintaining strict dosing accuracy. You must also ensure GMP compliance while preserving operational flexibility across diverse product lines. A poorly selected machine leads to excessive downtime, wasted raw materials, and inconsistent batch yields.
Solving this bottleneck requires a structured evaluation process. You need to select a Capsule Filling Machine that perfectly aligns with your current throughput requirements. It must handle specific material characteristics and offer clear pathways for future scalability. By analyzing mechanical capabilities alongside your facility constraints, you can deploy equipment that stabilizes your manufacturing workflow and protects your brand reputation.
Production Volume Dictates Architecture: Manual, semi-automatic, and fully automatic machines serve distinct operational scales; over-investing or under-investing severely impacts ROI.
Material and Size Compatibility is Critical: Up to 30% of manufacturers face compatibility issues; equipment must be evaluated against specific fill materials (powders, granules, pellets) and capsule sizes (000 to 5).
Changeover and Cleaning Drive True Efficiency: A machine's rated speed is less important than its overall equipment effectiveness (OEE), heavily influenced by tooling changeover times, ease of cleaning, and sanitation protocols.
Compliance and Validation are Non-Negotiable: Equipment must support Current Good Manufacturing Practice (cGMP) standards, requiring rigorous Factory Acceptance Testing (FAT) and traceable validation documentation.
Table of Contents
Capsule filling machine capacity should be evaluated based on actual production output rather than maximum rated speed. Overall Equipment Effectiveness (OEE) accounts for downtime, operating speed, and rejected capsules. Manual machines suit small batches, semi-automatic systems support growing production, and fully automatic machines are designed for high-volume manufacturing.
Powder flowability, cohesiveness, and bulk density directly affect capsule filling accuracy. Tamping pin systems form compressed powder plugs, while dosator systems use hollow dosing tubes to measure and transfer powder. Selecting the appropriate mechanism helps reduce filling variations, material waste, and equipment interruptions.
Capsule filling machines require compatible tooling for different capsule sizes, typically ranging from 000 to 5. Sizes 00 and 0 are commonly used for dietary supplements, while smaller sizes suit lower-volume formulations. Quick-change tooling and proper component storage help minimize downtime and prevent capsule damage during production changes.

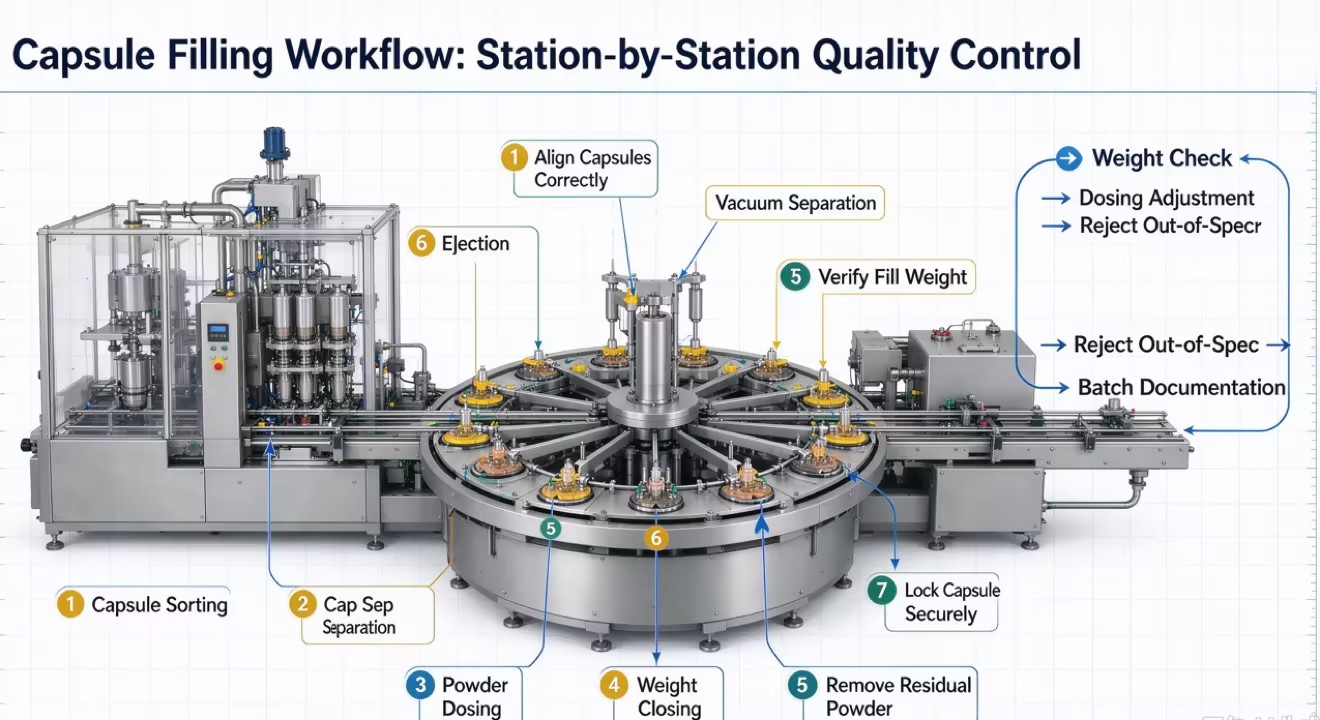

Capsule filling follows five main stages: capsule orientation, cap-body separation, material dosing, capsule closing, and finished capsule ejection. Manual systems require operator involvement, while automatic machines integrate these processes into a continuous workflow. Higher automation levels improve production consistency and reduce manual handling.
Manual capsule filling machines offer affordable solutions for research, formulation development, and small-batch production. They require minimal equipment investment and workspace but depend heavily on manual operation. Limited throughput and greater fill-weight variability make them less suitable for large-scale commercial manufacturing.
Semi-automatic capsule filling machines combine mechanical dosing and capsule closing with manual handling between stations. They offer higher output than manual systems while maintaining relatively low investment costs. Their flexibility makes them suitable for growing supplement manufacturers and medium-volume production.
Fully automatic capsule filling machines integrate capsule feeding, separation, dosing, closing, and rejection into a continuous process. Advanced sensors and precision dosing mechanisms support high throughput, consistent fill weights, and reduced manual intervention. These systems are suitable for large-scale supplement manufacturing and GMP-controlled production.
Accurate capsule dosing depends on precision tooling, stable powder feeding, and consistent machine settings. Automated checkweighers and feedback systems can detect fill-weight deviations and adjust dosing parameters where supported. Effective weight control reduces raw material waste, minimizes rejected capsules, and improves batch consistency.
Transitioning between different capsule sizes or formulations requires swapping format parts. You must evaluate the mechanical complexity of this process. Some machines require technicians to remove dozens of bolts, realign heavy turrets, and recalibrate sensors. A complex changeover can halt production for an entire shift, destroying your daily yield.
Fast changeover drives facility profitability, especially for contract manufacturers handling multiple client formulations daily. Look for equipment featuring quick-release mechanisms and tool-less disassembly. A well-designed Capsule Filling machine allows a single technician to swap dosing disks and capsule segments in under an hour. Faster changeovers mean more time spent actually producing capsules.
GMP-compliant capsule filling machines should feature hygienic construction, smooth surfaces, accessible components, and effective dust extraction. Suitable 316L stainless steel contact parts, removable tooling, and compatible seals help reduce contamination risks. Validated cleaning procedures ensure consistent sanitation between production batches.
User-friendly Human-Machine Interfaces (HMIs) simplify capsule filling operations through touchscreen controls, recipe management, production monitoring, and fault diagnostics. Ergonomic hopper placement, accessible maintenance points, and clear visibility improve operator comfort, reduce errors, and support efficient production.
Capsule filling machine ROI depends on more than the initial equipment price. Labor requirements, dosing accuracy, material waste, cleaning time, and maintenance costs all affect long-term profitability. Reliable automated systems can reduce operating expenses, improve production yield, and minimize downtime.
Factory installation requirements include sufficient floor space, maintenance access, electrical power, compressed air, and vacuum systems. Additional equipment, such as capsule polishers, metal detectors, and dust extractors, must also be considered. Modular machine designs allow future production expansion and support additional filling configurations.
Preventive maintenance helps maintain capsule filling machine reliability and reduce unexpected production interruptions. Regular inspection of tamping pins, dosing discs, seals, and sensors is essential. Selecting suppliers with accessible spare parts, technical support, and operator training can significantly reduce maintenance delays.
Capsule and formulation compatibility directly affects filling accuracy and production efficiency. Gelatin and HPMC capsules differ in moisture sensitivity and mechanical properties, while powders vary in flowability and density. Testing actual capsules and formulations before purchasing equipment helps identify potential feeding, separation, and dosing problems.
Temperature and humidity control are essential for consistent capsule filling performance. Low humidity can increase static electricity, while excessive moisture may cause powder clumping and capsule deformation. Suitable HVAC systems and anti-static measures help stabilize material handling and reduce filling inconsistencies.
Factory Acceptance Testing (FAT) verifies machine performance, safety functions, dosing accuracy, and changeover capabilities before shipment. Suppliers should also provide appropriate Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation or support. These procedures help manufacturers establish consistent equipment performance and meet applicable GMP requirements.
The optimal encapsulation equipment is not universally the fastest or the most complex. It is the machine that precisely aligns with your brand's current formulation complexity, ease of use requirements, and daily production volume. Over-specifying equipment drains resources, while under-specifying chokes your growth potential.
Use a clear shortlisting logic. Select manual fillers for R&D and startup testing. Deploy semi-automatic machines for agile, mid-volume growth where flexibility matters most. Invest in fully automatic systems for dedicated, high-yield continuous runs requiring minimal operator intervention.
Take these immediate next steps:
Audit your current production bottlenecks to identify exactly where labor slows down your output.
Calculate your true Overall Equipment Effectiveness (OEE) to understand your realistic capacity needs.
Request technical data sheets from equipment manufacturers to compare utility requirements against your facility's infrastructure.
Schedule a material trial using your specific powder blends and capsule types to verify mechanical compatibility.
A: A semi-automatic machine typically produces between 10,000 and 30,000 capsules per hour. Actual output depends heavily on operator skill, as technicians must manually transfer capsule rings between stations. Machine ergonomics, powder flowability, and the frequency of formulation changeovers also significantly impact your final daily yield.
A: You must swap specific format parts, including dosing disks, tamping pins, and capsule segments. Technicians remove the current tooling, clean the machine, install the new size parts, and recalibrate the sensors. Depending on machine design, this process takes anywhere from 30 minutes to several hours.
A: Weight variation stems from inconsistent powder flow, improper tamping pin adjustment, or worn dosing disks. Environmental factors like high ambient humidity can cause powders to clump, while static electricity causes powder bridging. Maintaining strict environmental controls and regular tooling inspections prevents most weight inconsistencies.
A: Yes, many machines offer flexibility for different materials. However, switching from powders to granules or pellets typically requires changing the dosing station mechanism. You usually must remove the tamping pin setup and install a specialized pellet feeder or dosator system to handle the different physical properties.
A: Capsule separation relies on precise vacuum pressure. If the vacuum pump underperforms or the filters clog, capsules will not separate. Additionally, deformed capsules, excessive static electricity, or incorrect tooling alignment can prevent the cap from detaching from the body during the orientation phase.
